Compact structure, nice appearance
Small size, light weight
Powered by air-cooled gasoline engine.
Low fuel consumption for higher power
Easy to operate, easy to maintain

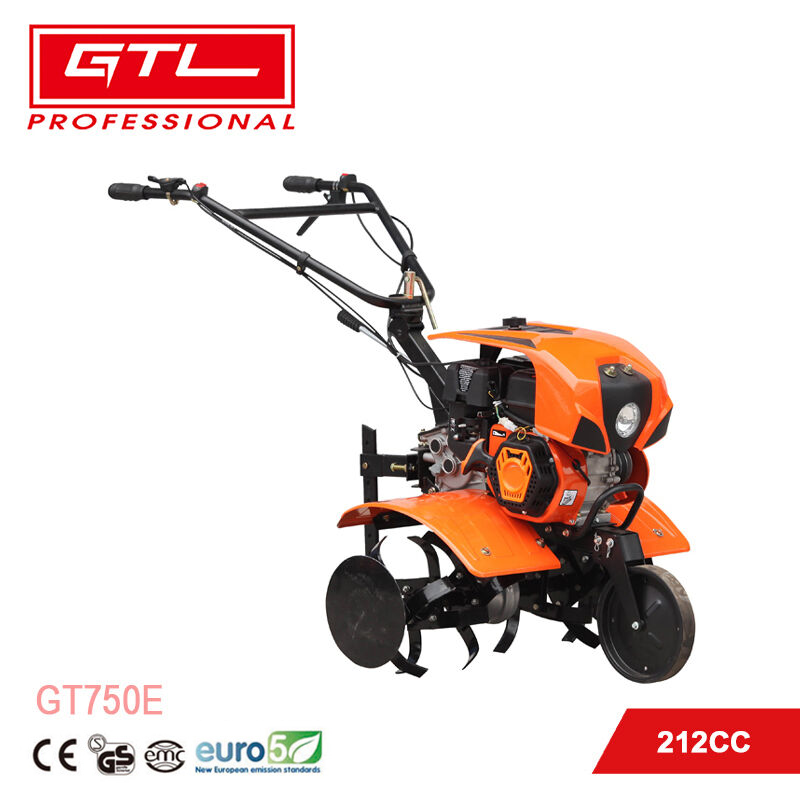

Item No. | GT750E |
Engine Model | 170F |
Engine Type | OHV,25°Tilt,single cylinder, forced air cooling,4-stroke |
Displacement | 212CC |
Bore x stroke | 70*55mm |
Fuel tank capacity | 3.6L |
Starting System | Recoil Start(Hand Start) |
Rated Power: | 7.0HP (5.0KW)/3600 RPM |
Max Power | 7.5HP (5.5KW)/3600 RPM |
Working width: | 550-800 (mm) |
Working depth: | 100-300 (mm) |
Gear Shifting: | 2 Forward , 1 Reverse |
Blades Type: | 24 Pcs/4Pcs×3(2+1)Groups |
Gearbox: | Aluminum GEARBOX |
Transmission | Belt |
Transmission oil capacity | 0.95 L ( transmission) / 0.6 L (engine) |
Wheel | One pair of 400-8 wheels |
Attachments | Two pcs Disc |
POWERFUL 4-STROKE GAS POWERED MOTOR The tiller engine with 7HP and 212cc displacement makes soil cultivation much easier for you
EFFECTIVE GARDEN TILLER - With a working maximum width 800mm , garden power tiller cultivator digs up your soil in a short time. Even tough applications such as clay soil and lawn / roots are no problem. The working width can be adjustable from 550-880mm in different width.
DEEP TILLING - The 24 knives of the hand gas tiller dig up to 100-300mm deep into the earth. You can do your work quickly and effectively
COMFORTABLE WORK - The handles of the machine are ergonomically attached for effortless work. The hand tiller is agile and easy to maneuver. This Power tiller designed with both forward and reverse speed, more convenient for you to move the machine
SAFTY DESIGN -The clutch handle with safty lock design, during working free time the machine will not moving without this lock release
RELIABLE GEARBOX - With Aluminum GEARBOX structure,more convenient for maintenance
